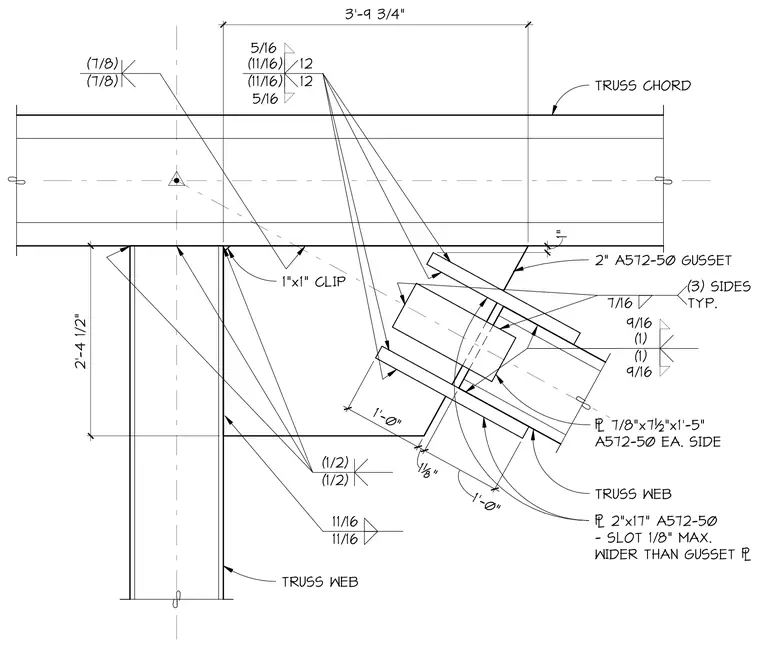

A structural steel truss connection joins a truss web to a truss chord using a two-inch ASTM A572 Grade 50 gusset plate. Additional reinforcement includes 7/8 inch by 7-1/2 inch by 1 foot 5 inch plates on each side of the web, welded with five-sixteenths and seven-sixteenths fillet welds on three sides typically. A two-inch by seventeen-inch plate features a slot one-eighth inch maximum wider than the gusset plate. Fillet welds of various sizes secure the intersecting web members to the chord and gusset assembly.
2'-4 1/2" 3'-9 3/4" 1" TRUSS WEB 11/16 11/16 (1/2) (1/2) TRUSS CHORD 2" A572-50 GUSSET 7/16 (3) SIDES TYP. (1) (1) 9/16 7/8"x7½"x1' -5" A572-50 EA. SIDE 2"x17" A572 -50 - SLOT 1/8" MAX. WIDER THAN GUSSET TRUSS WEB 1'-0" 1 " 1'-0" 1"x1" CLIP (7/8) (7/8) (11/16) 12 (11/16) 12 5/16 9/16 5/16
