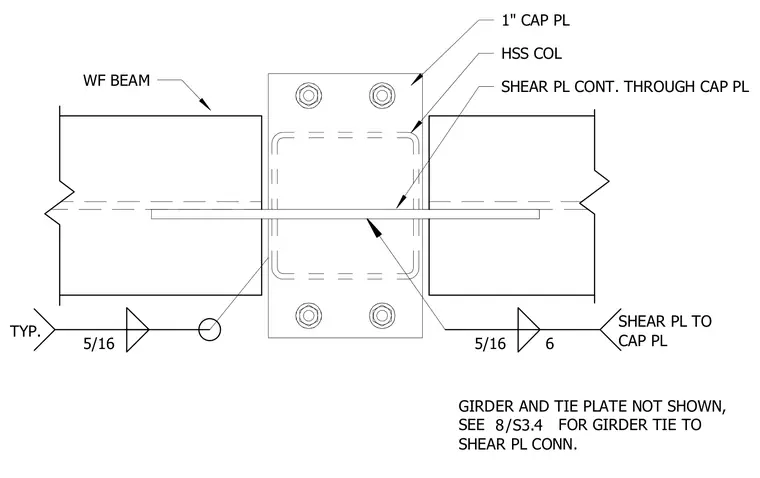

A wide flange beam connects to a hollow structural section column using a one-inch cap plate and a continuous shear plate that passes directly through the cap plate. Five-sixteenths inch fillet welds attach the shear plate to the cap plate on a typical basis. Four anchor bolts or fasteners secure the column assembly from above. A continuous shear plate runs between opposing beams across the column profile.
5/16 6 SHEAR PL TO CAP PL WF BEAM TYP. 5/16 HSS COL 1" CAP PL SHEAR PL CONT. THROUGH CAP PL GIRDER AND TIE PLATE NOT SHOWN, SEE FOR GIRDER TIE TO SHEAR PL CONN. / 8 S3.4
