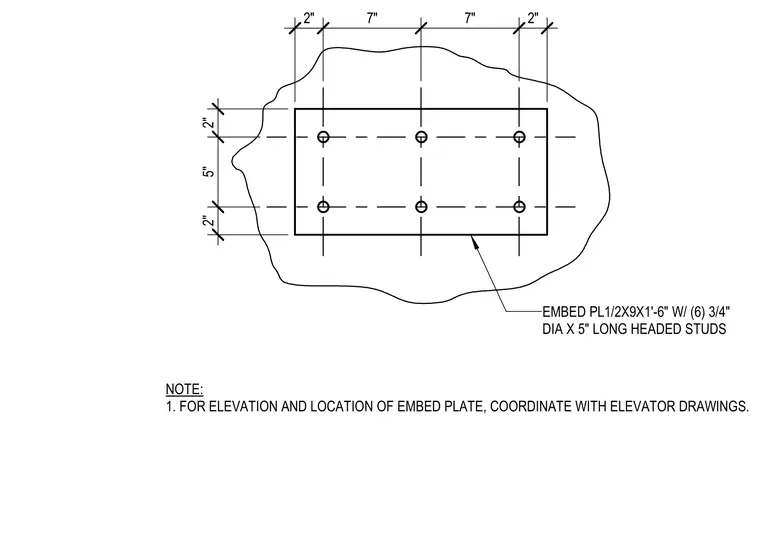

An embed plate measuring one-half inch by nine inches by one foot six inches is anchored with six three-quarter-inch diameter by five-inch long headed studs. Coordinate the exact elevation and location of the embed plate with the elevator drawings.
2" 7" 7" 2" 2" 5" 2" EMBED PL1/2X9X1'-6" W/ (6) 3/4" DIA X 5" LONG HEADED STUDS NOTE: 1. FOR ELEVATION AND LOCATION OF EMBED PLATE, COORDINATE WITH ELEVATOR DRAWINGS.
