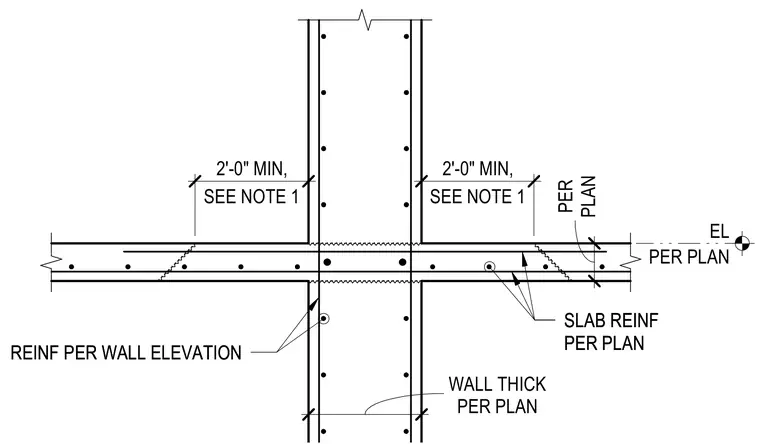

A reinforced concrete floor slab framing into a vertical concrete wall with slab reinforcement extending through the junction with a two-foot minimum lap splice length per note one. Wall thickness and elevation are sized per plan with vertical and horizontal reinforcing steel governed by the wall elevation. Slab reinforcement consists of bars sized and spaced per plan continuing across the intersection.
PER PLAN EL 24" 8" PER PLAN WALL THICK PER PLAN 24 1/8" 23 7/8" SEE NOTE 1 2'-0" MIN, SEE NOTE 1 2'-0" MIN, SLAB REINF PER PLAN SLAB REINF PER PLAN REINF PER WALL ELEVATION REINF PER WALL ELEVATION
