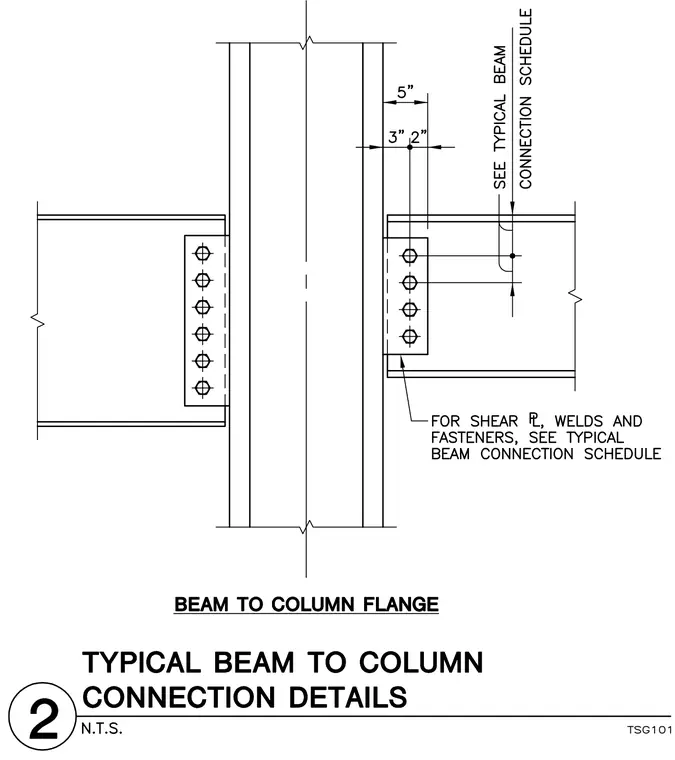

Steel floor beams frame into the flanges of a structural steel column using welded-to-column and bolted-to-beam connection plates. Each beam connects via a vertical shear plate shop-welded to the column flange and field-bolted to the beam web with six bolts on the left and four bolts on the right. Dimensions indicate a 3-inch gauge from the column face to the first vertical bolt line and a 5-inch total dimension to the second line. Shear plates, welds, and fasteners are sized per the typical beam connection schedule.
