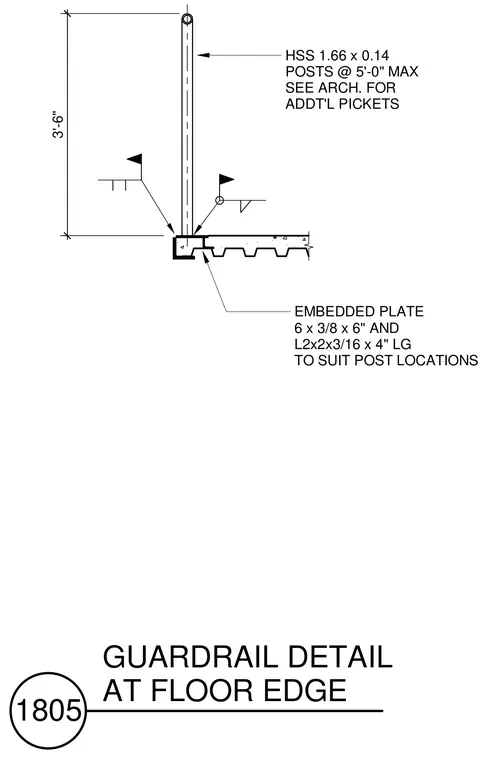

Hollow structural section posts measuring 1.66 inches by 0.14 inches are spaced at a maximum of 5'-0" and extend 3'-6" above the floor edge. Additional pickets are coordinated per architectural drawings. The posts weld to an embedded plate measuring 6" x 3/8" x 6" along with a matching angle measuring L2x2x3/16 by 4" long tailored to suit the post locations at the floor edge.
HSS 1.66 x 0.14 POSTS @ 5'-0" MAX SEE ARCH. FOR ADDT'L PICKETS EMBEDDED PLATE 6 x 3/8 x 6" AND L2x2x3/16 x 4" LG TO SUIT POST LOCATIONS 3'-6" 1805 GUARDRAIL DETAIL AT FLOOR EDGE
