Structural · S-XSREY

Typical Slab Edge Detail

Materials

Reinforced Concrete Steel Timber / Wood Glass / Glazing

Elements

Beams Walls Curtain Walls Floors / Slabs Decks Connections / Plates Reinforcing Roof / Floor Openings

Connections

Welded Connection Rebar Splice / Development Deck Attachment Embed Plate

About this detail

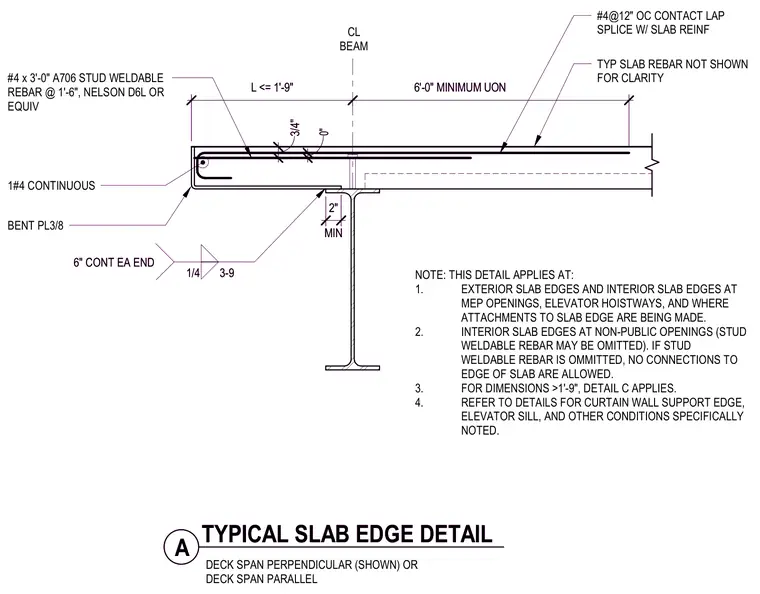

A concrete floor slab edge is supported by a structural steel beam. The assembly incorporates a continuous bent plate with a thickness of three-eighths of an inch connected via a quarter-inch fillet weld spanning three feet and nine inches. Number four stud-weldable rebar conforming to ASTM A706 specification is spaced at one foot and six inches on center, supplemented by a continuous number four bar at the edge. The slab reinforcement includes number four bars at twelve inches on center configured with a contact lap splice into the main slab reinforcement. Additional provisions address exterior slab edges, interior openings, and elevator hoistways with specific dimensional limits.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
