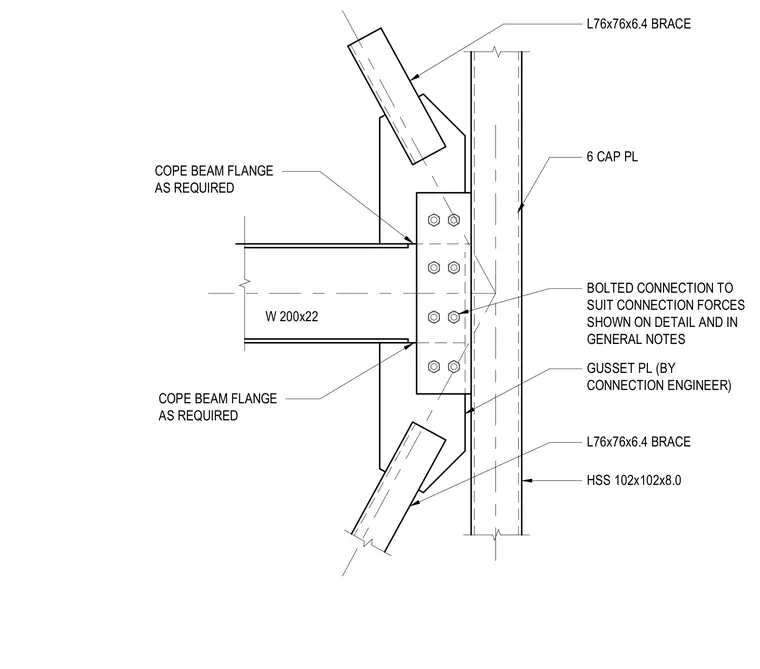

A W200x22 wide-flange beam frames into an HSS 102x102x8.0 column with its flanges coped as required. The connection uses a cap plate and a gusset plate designed by the connection engineer to accommodate the design forces. Two L76x76x6.4 angle braces tie into the gusset plates above and below the beam. A bolted connection secures the assembly, sized per the connection forces shown on the detail and in the general notes.
W 200x22 COPE BEAM FLANGE AS REQUIRED 6 CAP PL BOLTED CONNECTION TO SUIT CONNECTION FORCES SHOWN ON DETAIL AND IN GENERAL NOTES GUSSET PL (BY CONNECTION ENGINEER) L76x76x6.4 BRACE HSS 102x102x8.0 L76x76x6.4 BRACE COPE BEAM FLANGE AS REQUIRED
