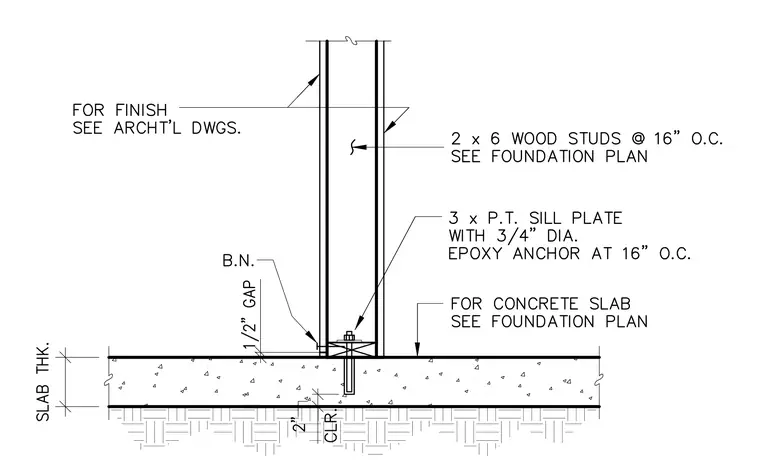

A two-by-six wood stud wall at sixteen inches on center bears on a three-inch pressure-treated sill plate secured to the concrete slab with three-quarter-inch diameter epoxy anchors at sixteen inches on center. A one-half-inch gap is detailed at the base with a foundation connection note. The concrete slab rests over subgrade with specified clearance to reinforcement.
