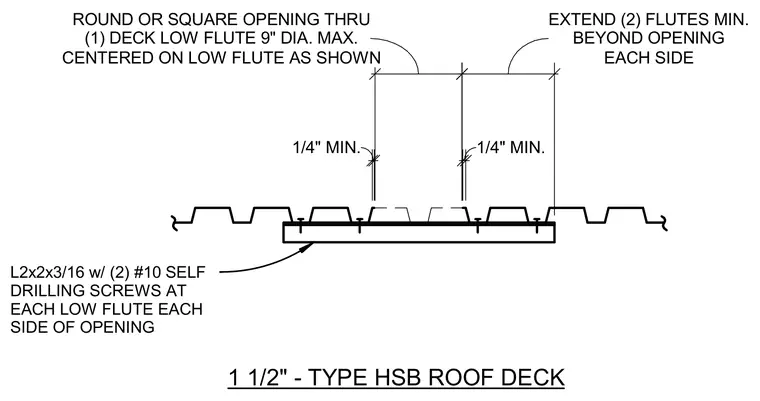

Framing reinforcement required for a round or square opening up to nine inches in diameter cut through a 1 1/2-inch Type HSB roof deck low flute. An L2x2x3/16 angle spans beneath the opening, centered on the low flute and extending a minimum of two flutes beyond each side of the opening. Two number 10 self-drilling screws secure the deck to the angle at each low flute on each side of the opening, maintaining a one-quarter inch minimum clearance.
1 1/2" - TYPE HSB ROOF DECK L2x2x3/16 w/ (2) #10 SELF DRILLING SCREWS AT EACH LOW FLUTE EACH SIDE OF OPENING CENTERED ON LOW FLUTE AS SHOWN ROUND OR SQUARE OPENING THRU (1) DECK LOW FLUTE 9" DIA. MAX. EACH SIDE EXTEND (2) FLUTES MIN. BEYOND OPENING 1/4" MIN. 1/4" MIN.
