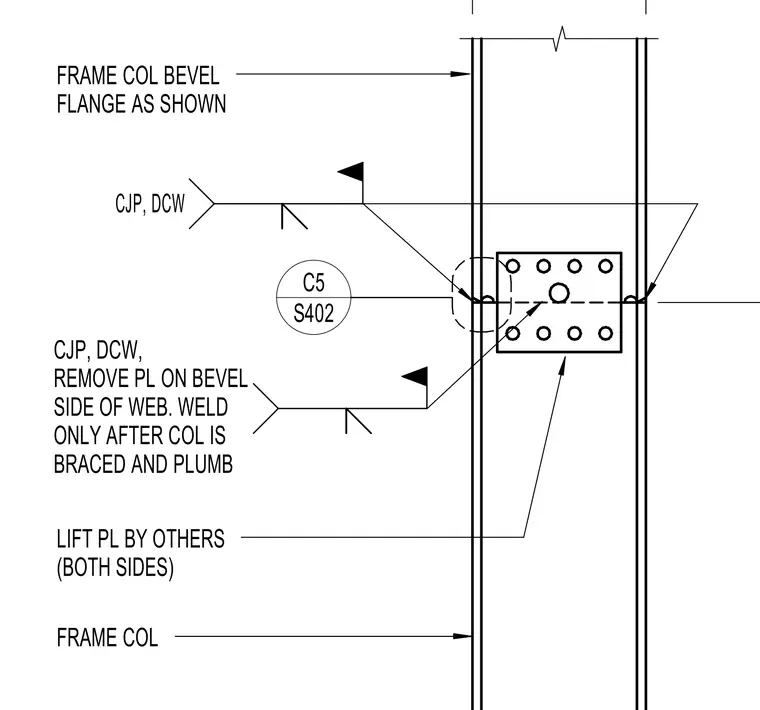

A steel framing column with a bevel flange and lift plates provided on both sides by others. The assembly requires complete joint penetration welds with double-welded joints, where the plate on the bevel side of the web is removed as indicated. Welding must only take place after the column is fully braced and plumb.
FRAME COL LIFT PL BY OTHERS (BOTH SIDES) FRAME COL BEVEL FLANGE AS SHOWN CJP, DCW, REMOVE PL ON BEVEL SIDE OF WEB. WELD ONLY AFTER COL IS BRACED AND PLUMB S402 C5 CJP, DCW
