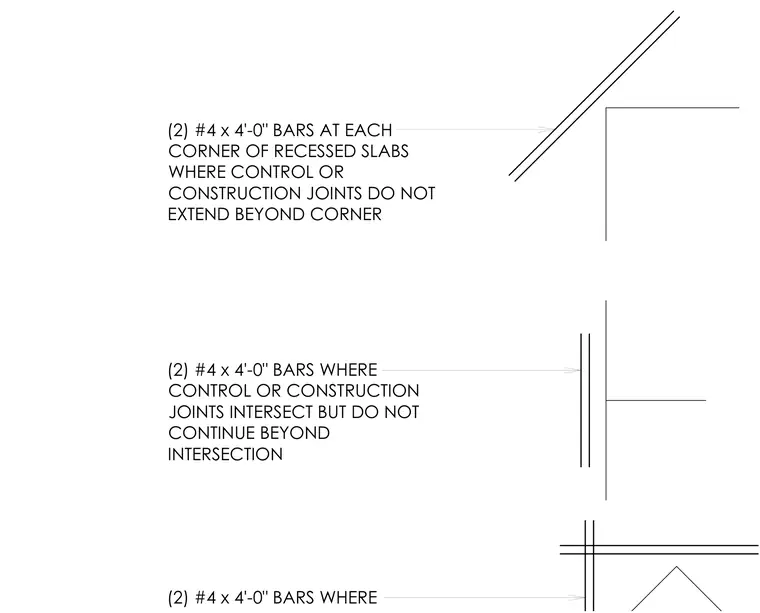

Two number four reinforcing bars measuring four feet in length are placed diagonally at each corner of recessed concrete slabs where control joints or construction joints do not extend beyond the corner. Similar two number four bars at four feet long are installed at intersecting control or construction joints that do not continue beyond the intersection.
(2) #4 x 4'-0" BARS AT EACH CORNER OF RECESSED SLABS WHERE CONTROL OR CONSTRUCTION JOINTS DO NOT EXTEND BEYOND CORNER (2) #4 x 4'-0" BARS WHERE CONTROL OR CONSTRUCTION JOINTS INTERSECT BUT DO NOT CONTINUE BEYOND INTERSECTION (2) #4 x 4'-0" BARS WHERE
