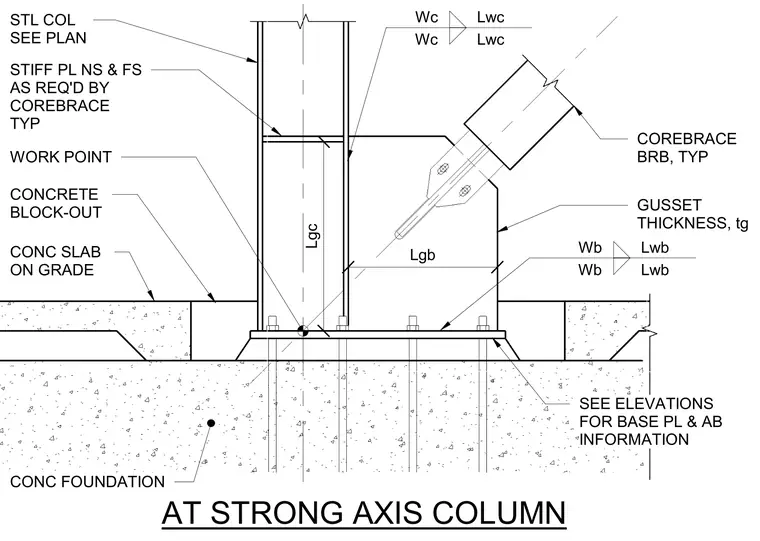

A CoreBrace buckling-restrained brace connects to a structural steel column and foundation at the strong axis. A gusset plate of thickness tg is welded to the column and base plate, transferring lateral loads into the concrete foundation. Stiffener plates are provided near side and far side as required by the manufacturer. A concrete block-out surrounds the base of the column at the slab-on-grade intersection, while anchor bolts and base plate details are referenced on elevations.
CONC SLAB ON GRADE STL COL SEE PLAN CONCRETE BLOCK-OUT STIFF PL NS & FS AS REQ'D BY COREBRACE TYP CONC FOUNDATION WORK POINT Wc Lwc Wc Lwc COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb SEE ELEVATIONS FOR BASE PL & AB INFORMATION AT STRONG AXIS COLUMN Lgc Lgb
