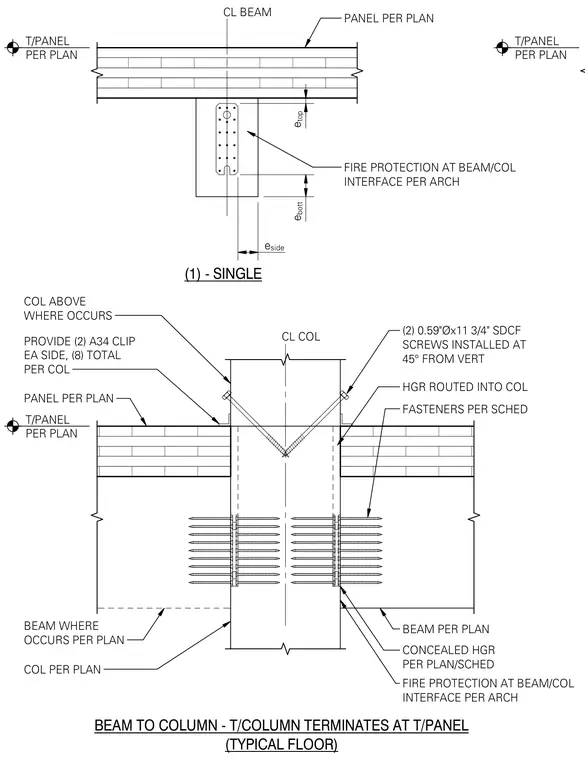

A structural column terminates at the top of the panel on a typical floor, connecting to a beam via concealed hangers routed into the column and fastened according to the project schedule. Two A34 clips are provided on each side, totaling eight clips per column, secured with two 0.59-inch diameter by 11-3/4-inch SDCF screws installed at a 45-degree angle from the vertical. Fire protection is applied at the beam-to-column interface as specified by the architectural drawings.
BEAM PER PLAN PANEL PER PLAN BEAM WHERE OCCURS PER PLAN CL COL T/PANEL PER PLAN HGR ROUTED INTO COL FASTENERS PER SCHED CONCEALED HGR PER PLAN/SCHED FIRE PROTECTION AT BEAM/COL INTERFACE PER ARCH COL PER PLAN (1) - SINGLE CL BEAM T/PANEL PER PLAN PANEL PER PLAN COL ABOVE WHERE OCCURS BEAM TO COLUMN - T/COLUMN TERMINATES AT T/PANEL (TYPICAL FLOOR) FIRE PROTECTION AT BEAM/COL INTERFACE PER ARCH e side e bott e top T/PANEL PER PLAN PROVIDE (2) A34 CLIP EA SIDE, (8) TOTAL PER COL (2) 0.59"Øx11 3/4" SDCF SCREWS INSTALLED AT 45° FROM VERT
