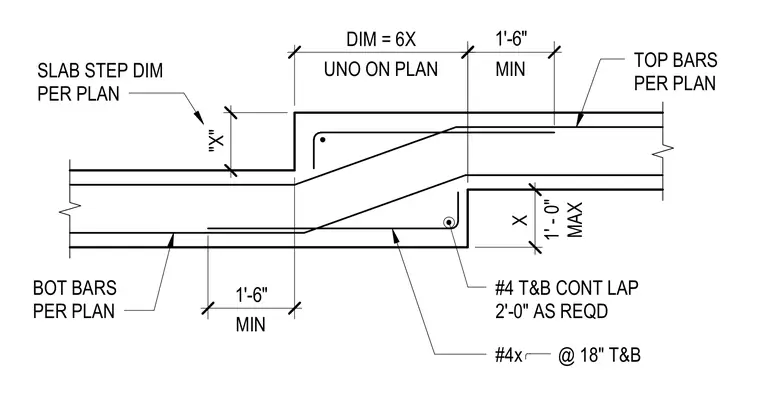

Concrete slab step reinforced with continuous top and bottom bars per plan, tied with number four bars spaced at eighteen inches top and bottom. The step transition maintains a dimension X specified on plan up to a maximum of one foot zero inches, with a six times dimension X lap requirement unless noted otherwise. Top and bottom continuous bars feature a minimum two-foot lap length extending one foot six inches minimum past the step transition.
1'-6" 36" 1'-6" 12" 12" BOT BARS PER PLAN #4 T&B CONT LAP 2'-0" AS REQD #4x @ 18" T&B TOP BARS PER PLAN SLAB STEP DIM PER PLAN 1' - 0" MAX "X" DIM = 6X UNO ON PLAN MIN X MIN
