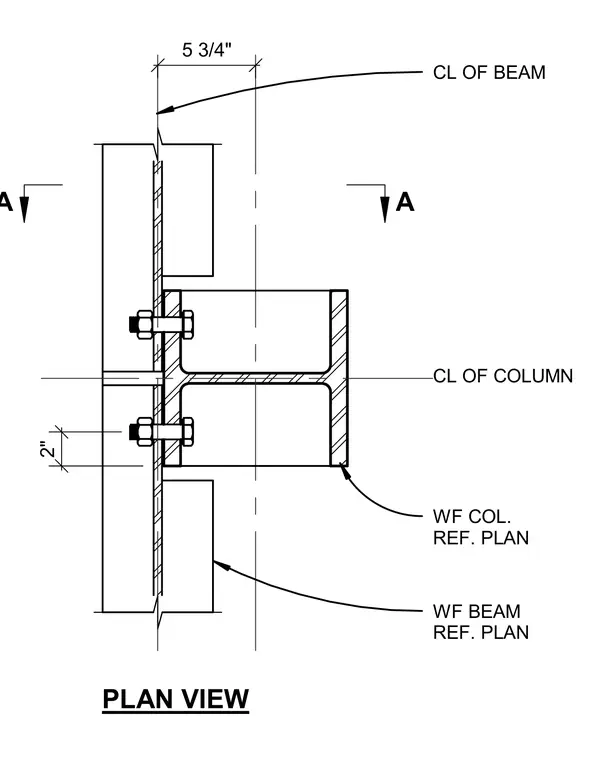

A wide flange beam connects to the flange of a wide flange column with an offset alignment relative to the column centerline. The connection is dimensioned with a five and three-quarters inch offset between the column reference plan and the beam centerline, and a two inch dimension between bolt groups. Centerlines denote the intersecting axes of the structural members. Section cut indicators A-A show the orientation of the plan view.
5 3/4" 2" WF COL. REF. PLAN CL OF COLUMN WF BEAM REF. PLAN CL OF BEAM A A PLAN VIEW
