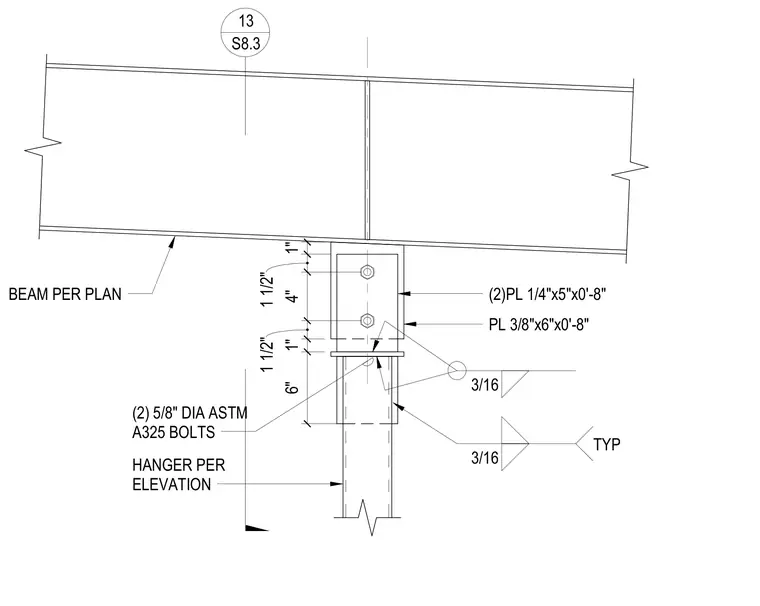

The assembly connects a structural steel beam sized per plan to a hanger sized per elevation via intermediate steel plates. Two three-eighths-inch by six-inch by zero-foot-eight-inch plates and two one-quarter-inch by five-inch by zero-foot-eight-inch plates form the connection assembly. Two five-eighths-inch diameter ASTM A325 bolts secure the members through the plate assembly with pre-determined dimensional spacings. Three-sixteenths-inch typical fillet welds join the steel components together.
6" 1" 1 1/2" 4" 1 1/2" 1" (2)PL 1/4"x5"x0'-8" PL 3/8"x6"x0'-8" BEAM PER PLAN (2) 5/8" DIA ASTM A325 BOLTS HANGER PER ELEVATION 3/16 TYP 3/16 13 S8.3
