About this detail

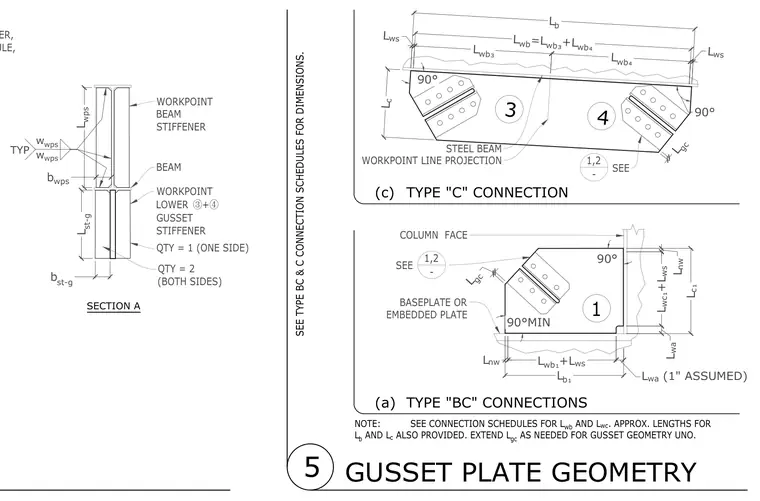

This drawing outlines the geometric layout and dimensioning for structural steel gusset plate connections, including Type BC and Type C configurations. Beam stiffeners and lower gusset stiffeners are positioned at calculated workpoints along the steel beam and column face. Dimension variables define bolt spacing, edge distances, and plate extensions per the connection schedules. Additional notes specify referencing connection schedules for length values and extending plate lengths as needed for gusset geometry.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
