Structural · S-XQSQF

Typical Small Opening In Floor Slab

Materials

Concrete Metal (misc.)Composite

Elements

Beams Floors / Slabs Decks Roof / Floor Openings

Connections

Welded Connection Shear Stud / Composite

About this detail

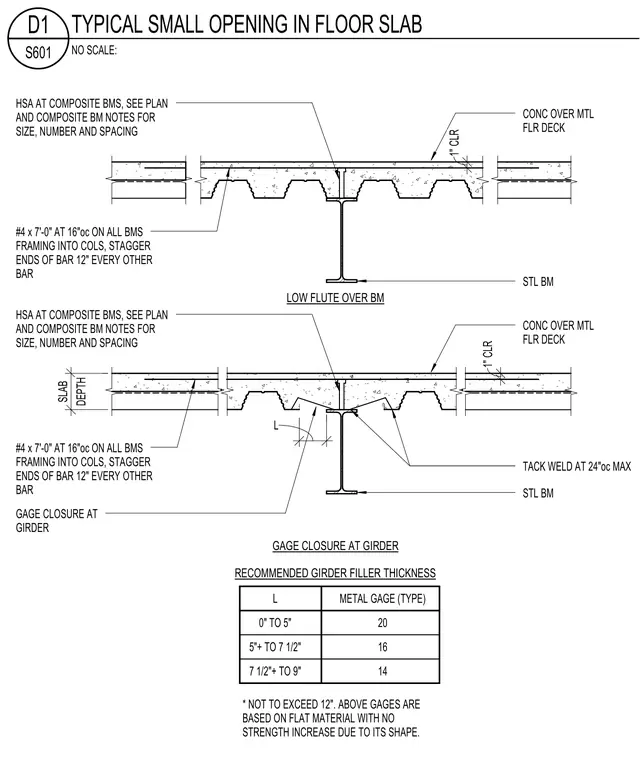

Concrete over metal floor deck is supported by a structural steel beam, maintaining a one-inch clearance. Headed stud anchors are installed at composite beams with size, number, and spacing per plan and composite beam notes. Number four reinforcing bars measuring seven feet zero inches long are spaced at sixteen inches on center on all beams framing into columns, with alternate bar ends staggered twelve inches. A gauge closure is provided at the girder with tack welds at twenty-four inches on center maximum, accompanied by a schedule of recommended girder filler thicknesses correlating gap dimensions to metal gauges.
