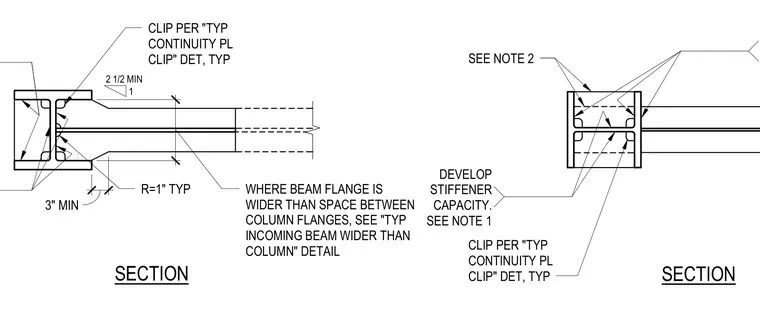

Stiffener plates are welded to the column flanges with typical corner clips and specified minimum dimensions. A gusset plate connects centrally to the column web and flanges, featuring a transition taper with a typical one-inch radius. Welds develop the full capacity of the stiffener plates per structural notes. Where beam flanges exceed the space between column flanges, transition details apply.
2 1/2 MIN 1 SECTION 3 1/2" 3" MIN R=1" TYP CLIP PER "TYP CONTINUITY PL CLIP" DET, TYP SEE NOTE 2 WHERE BEAM FLANGE IS WIDER THAN SPACE BETWEEN COLUMN FLANGES, SEE "TYP INCOMING BEAM WIDER THAN COLUMN" DETAIL SECTION CLIP PER "TYP CONTINUITY PL CLIP" DET, TYP SEE NOTE 2 DEVELOP STIFFENER CAPACITY. SEE NOTE 1
