Structural · S-XQDXY

Typical Braced Frame Column and Anchorage

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Arches Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Bolted Connection Rebar Splice / Development

About this detail

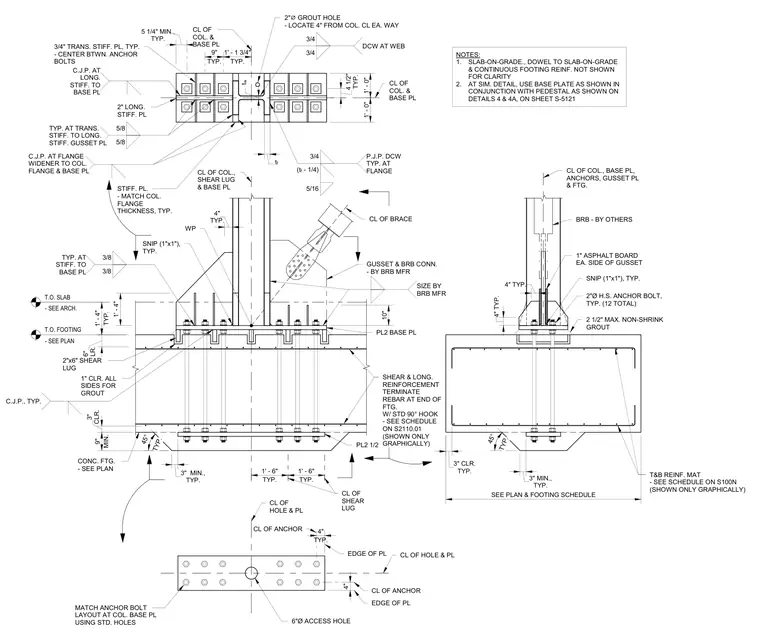

A structural steel braced frame column base rests on a reinforced concrete footing. The assembly features a heavy base plate secured by twelve two-inch diameter high-strength anchor bolts and supported by a two-and-a-half-inch maximum non-shrink grout layer. A gusset plate connects the buckling-restrained brace to the column and base plate assembly, detailed with various stiffener plates, complete joint penetration and fillet welds, and a shear lug. The concrete footing includes top and bottom reinforcing mats with standard hooks and a two-inch diameter grout hole centered on the column.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
