Low Roof Deck at Interior Slab Edge Detail

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Windows Roofs Floors / Slabs Decks Arches Bracing Insulation Connections / Plates

Connections

Bracing Connection

About this detail

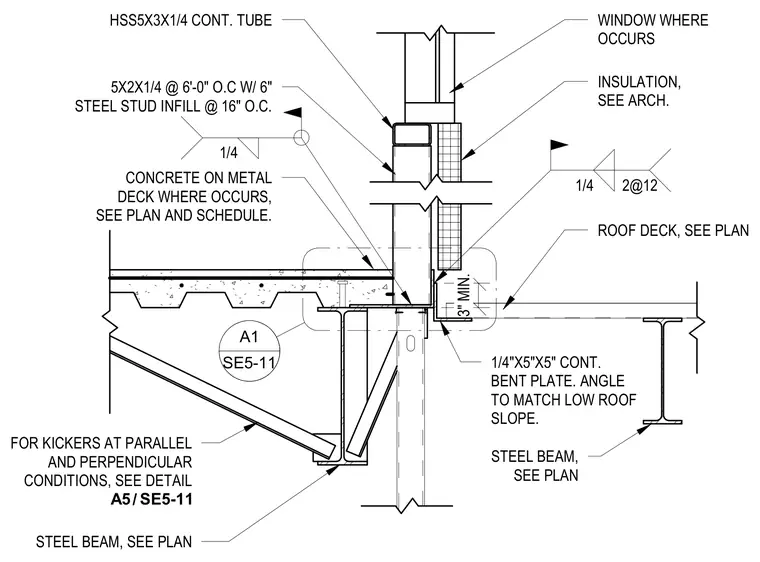

A low roof deck connects structurally to an interior concrete slab edge supported by steel framing. A continuous 1/4-inch by 5-inch by 5-inch bent plate, angled to match the low roof slope, ties the roof deck to the assembly with a 3-inch minimum clearance. A hollow structural section continuous tube (HSS5x3x1/4) acts as a structural member within the wall line, backed by a 5x2x1/4 member spaced at 6 feet on center with 6-inch steel stud infill at 16 inches on center for kickers at parallel and perpendicular conditions. Additional support is provided by steel beams sized per plan, with kickers connecting back to the primary framing. Concrete on metal deck occurs where indicated, alongside architectural insulation and window assemblies.
