Exterior Foundation Wall Detail at Metal Stud Wall with EIFS

Materials

Concrete Steel Cold-formed Steel Timber / Wood Masonry / CMU Metal (misc.)EIFS / Plaster / Stucco

Elements

Columns Walls Floors / Slabs Decks Foundations / Footings Arches Bracing Anchors / Embeds Reinforcing

Connections

Braced Frame Connection Rebar Splice / Development

About this detail

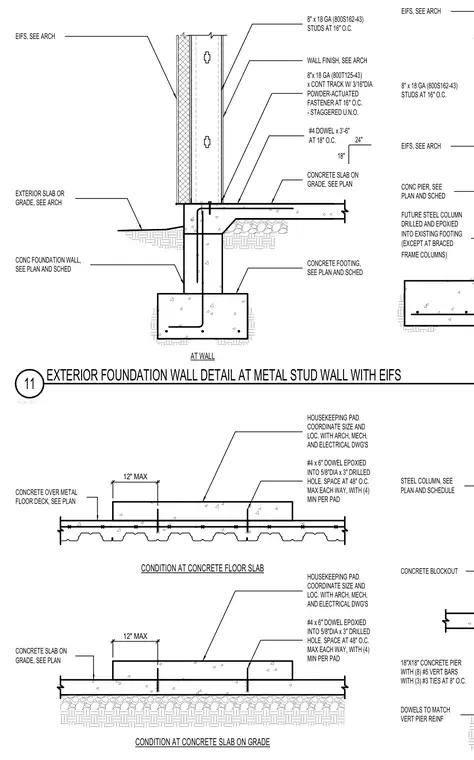

An exterior foundation wall supports an 8-inch 18-gauge metal stud wall finished with EIFS on the exterior. The continuous track is anchored to the concrete slab on grade using 3/16-inch diameter powder-actuated fasteners spaced at 16 inches on center, with #4 dowels at 18 inches on center extending from the foundation wall. Separate conditions detail housekeeping pads over a concrete floor slab and a concrete slab on grade, anchored with #4 by 6-inch dowels epoxied into 5/8-inch diameter by 3-inch drilled holes spaced at 48 inches on center. Additional partial views show a concrete pier reinforced with eight #5 vertical bars and three #3 ties at 8 inches on center, along with future steel columns drilled and epoxied into existing footings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
