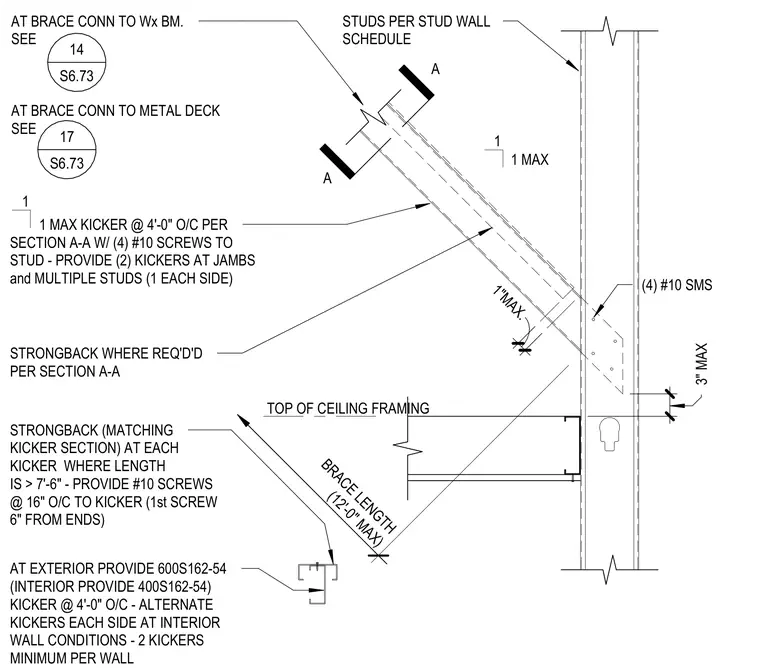

Cold-formed steel stud wall framed with studs spaced per the stud wall schedule, reinforced at the top with a diagonal kicker brace. The kicker consists of either a 600S162-54 section for exterior conditions or a 400S162-54 section for interior conditions spaced at four feet on center, alternating sides at interior walls with a minimum of two kickers per wall. The brace connects to the stud using four number ten screws, with two kickers provided at jambs and multiple studs placed one on each side. A strongback matching the kicker section is required when the brace length exceeds seven feet six inches, fastened with number ten screws at sixteen inches on center with the first screw six inches from the ends. Brace length is limited to a maximum of twelve feet with a maximum one-inch offset.
A A 1 1 MAX STUDS PER STUD WALL SCHEDULE 1 1 MAX KICKER @ 4'-0" O/C PER SECTION A-A W/ (4) #10 SCREWS TO STUD - PROVIDE (2) KICKERS AT JAMBS and MULTIPLE STUDS (1 EACH SIDE) STRONGBACK WHERE REQ'D'D PER SECTION A-A TOP OF CEILING FRAMING 1"MAX. BRACE LENGTH (12'-0" MAX) 3" MAX (4) #10 SMS STRONGBACK (MATCHING KICKER SECTION) AT EACH KICKER WHERE LENGTH IS > 7'-6" - PROVIDE #10 SCREWS @ 16" O/C TO KICKER (1st SCREW 6" FROM ENDS) AT EXTERIOR PROVIDE 600S162-54 (INTERIOR PROVIDE 400S162-54) KICKER @ 4'-0" O/C - ALTERNATE KICKERS EACH SIDE AT INTERIOR WALL CONDITIONS - 2 KICKERS MINIMUM PER WALL AT BRACE CONN TO Wx BM. SEE AT BRACE CONN TO METAL DECK SEE 14 S6.73 17 S6.73
