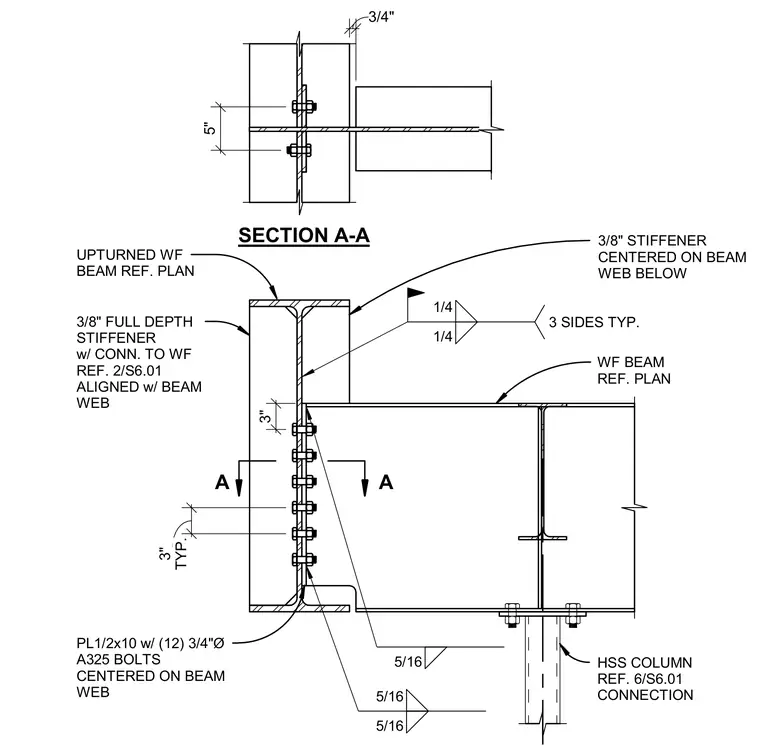

An upturned wide-flange beam connects to a hollow structural section column using a half-inch by ten-inch plate fastened with twelve three-quarter-inch diameter A325 bolts centered on the beam web. A three-eighths-inch full-depth stiffener aligns with the beam web and connects to the wide-flange section with quarter-inch fillet welds on three sides typically. An additional three-eighths-inch stiffener is centered on the beam web below, welded with five-sixteenths-inch fillet welds. The wide-flange beam is supported by an HSS column connection below.
3" TYP. 3" A A SECTION A-A 3/4" 5" WF BEAM REF. PLAN HSS COLUMN REF. 6/S6.01 CONNECTION PL1/2x10 w/ (12) 3/4"Ø A325 BOLTS CENTERED ON BEAM WEB 3/8" FULL DEPTH STIFFENER w/ CONN. TO WF REF. 2/S6.01 ALIGNED w/ BEAM WEB 3/8" STIFFENER CENTERED ON BEAM WEB BELOW 1/4 1/4 3 SIDES TYP. 5/16 5/16 5/16 UPTURNED WF BEAM REF. PLAN
