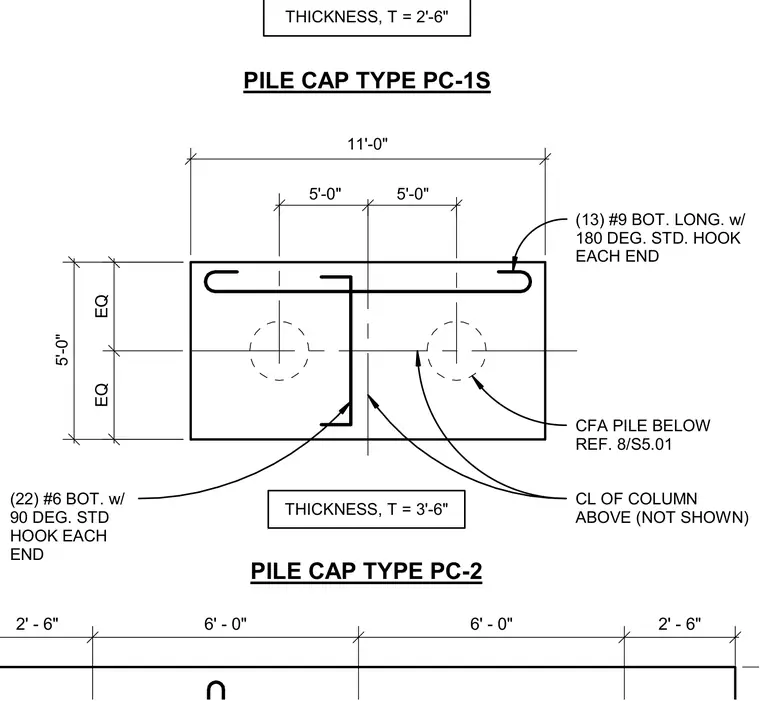

A concrete pile cap rests on two continuous flight auger piles below. The assembly is reinforced with thirteen number 9 bottom longitudinal bars featuring 180-degree standard hooks at each end. Additional reinforcement includes twenty-two number 6 bars with 90-degree standard hooks at each end. The cap is centered beneath an omitted column above and maintains specified dimensional clearances and edge distances.
"A " (3/2)* D (3/2)* D "B" EQ EQ CL OF COLUMN ABOVE (NOT SHOWN) PILE CAP TYPE PC-2 (13) #9 BOT. LONG. w/ 180 DEG. STD. HOOK EACH END THICKNESS, T = 3'-6" (22) #6 BOT. w/ 90 DEG. STD HOOK EACH END CFA PILE BELOW REF. 8/S5.01 11'-0" 5'-0" 5'-0" 5'-0" THICKNESS, T = 2'-6" PILE CAP TYPE PC-1S 2' - 6" 6' - 0" 6' - 0" 2' - 6"
