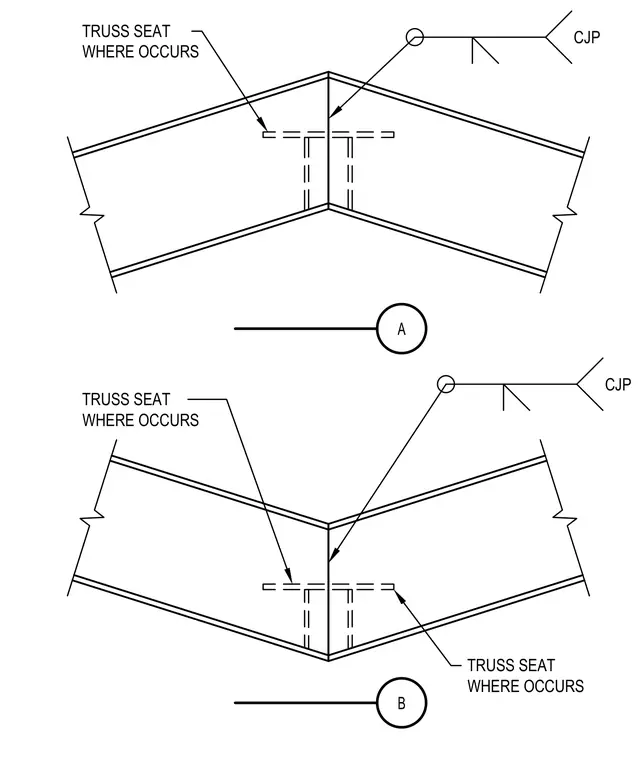

Two truss sections meet at a slope break, joined along the top and bottom chords with complete joint penetration welds. A truss seat is provided where indicated to support the assembly. The peak splice requires careful alignment of the intersecting chords prior to field welding.
A B TRUSS SEAT WHERE OCCURS TRUSS SEAT WHERE OCCURS CJP CJP TRUSS SEAT WHERE OCCURS
