Structural · S-XPK9T

Tilt-Up Concrete Panel to Steel Beam Connection

Materials

Concrete Steel

Elements

Floors / Slabs Arches Anchors / Embeds Connections / Plates

Connections

Welded Connection Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

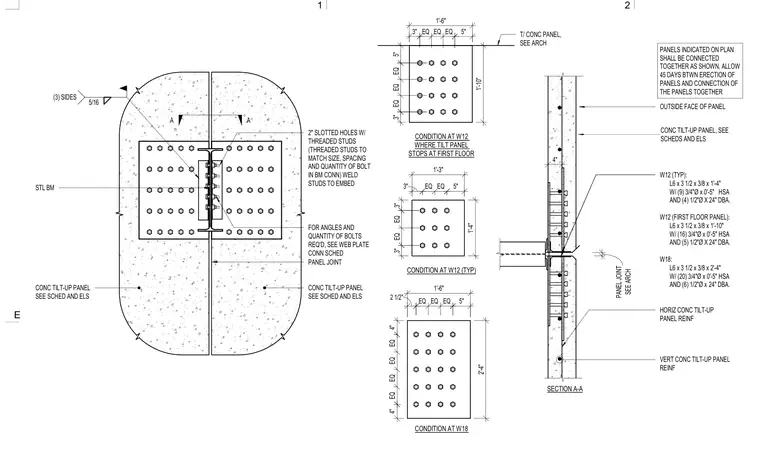

Concrete tilt-up panels tie into a steel beam using welded and bolted angle connections at the panel joint. The assembly features an L6x3-1/2x3/8 angle with headed stud anchors and deformed bar anchors embedded in the concrete panels, secured to the steel beam web using two-inch slotted holes with threaded studs. Different conditions apply for standard W12, first floor W12, and W18 beam sizes with varying plate lengths and anchor counts. A five-sixteenth fillet weld is applied on three sides of the connecting elements. Panels require a forty-five day waiting period between erection and final connection.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
