Structural · S-XPJWC

Cable Tray Support at Metal Stud Column

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Walls Ceilings Arches Connections / Plates

Connections

Bolted Connection Timber / Mass-Timber Connection

About this detail

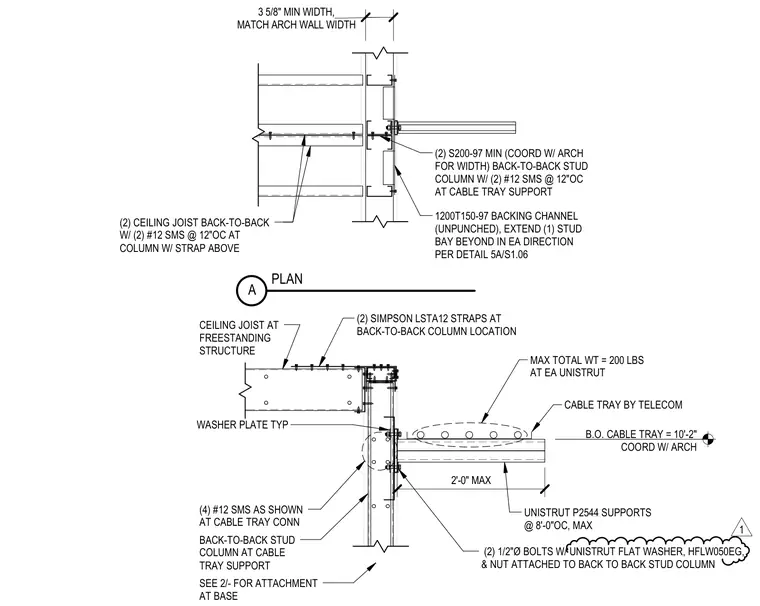

A cable tray support connects to a back-to-back cold-formed steel stud column. The assembly features two S200-97 minimum studs fastened with two number 12 self-tapping metal screws at twelve inches on center, reinforced with a 1200T150-97 unpunched backing channel. Ceiling joists at the freestanding structure are tied back with two Simpson LSTA12 straps. Cable tray supports utilize Unistrut P2544 members spaced at eight feet on center maximum, designed for a maximum total weight of two hundred pounds per each Unistrut. Attachment to the back-to-back stud column is made using two one-half-inch diameter bolts with Unistrut flat washers, HFLW050EG, and nuts alongside typical washer plates and four number 12 self-tapping metal screws.
