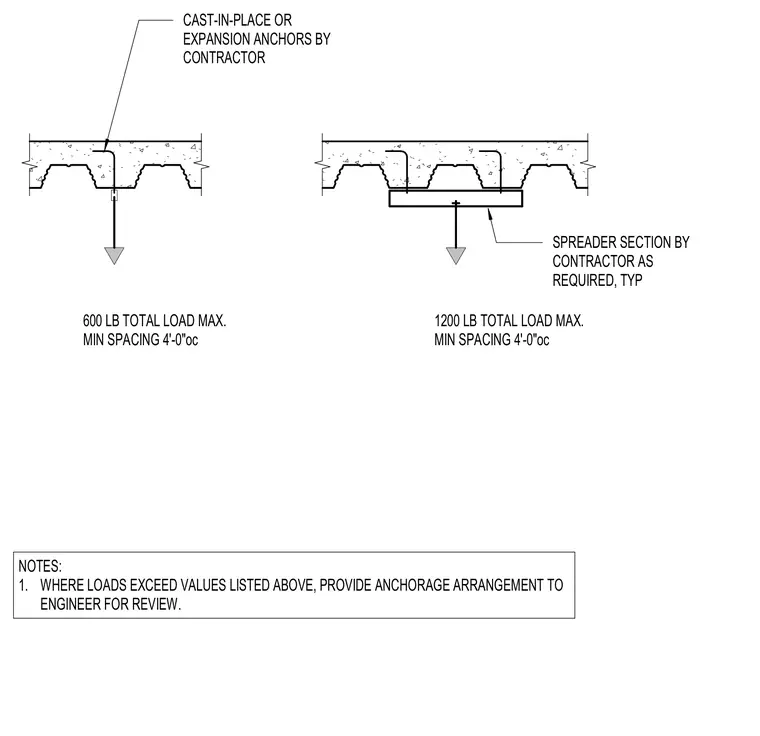

Cast-in-place or expansion anchors provided by the contractor support loads directly from the underside of a concrete-filled metal deck. Loads up to 600 pounds total require a minimum spacing of 4 feet on center. Loads up to 1200 pounds total require a spreader section by the contractor as required, with a minimum spacing of 4 feet on center. Where loads exceed these listed values, the contractor must provide an alternate anchorage arrangement to the engineer for review.
CAST-IN-PLACE OR EXPANSION ANCHORS BY CONTRACTOR 600 LB TOTAL LOAD MAX. MIN SPACING 4'-0"oc 1200 LB TOTAL LOAD MAX. MIN SPACING 4'-0"oc NOTES: 1. WHERE LOADS EXCEED VALUES LISTED ABOVE, PROVIDE ANCHORAGE ARRANGEMENT TO ENGINEER FOR REVIEW. SPREADER SECTION BY CONTRACTOR AS REQUIRED, TYP
