Round or square openings through a three-inch Type N roof deck are centered on a low flute with a maximum diameter of eleven inches. The structural reinforcement consists of L2x2x3/16 angle sections secured with two number ten self-drilling screws at each low flute on each side of the opening. These reinforcing angles extend a minimum of two flutes beyond the opening on each side, maintaining a quarter-inch minimum clearance.

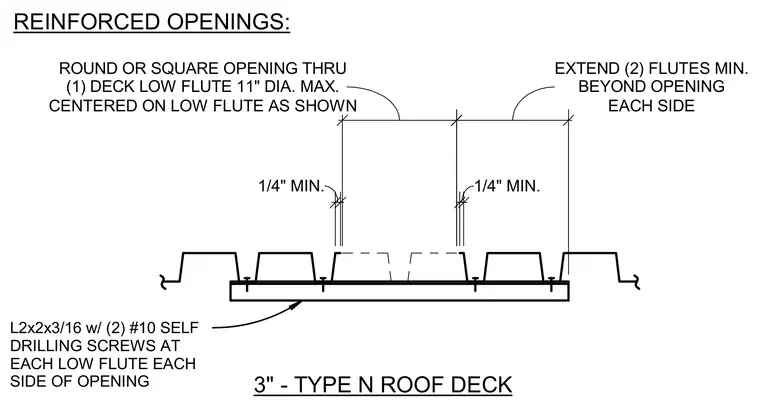

REINFORCED OPENINGS: 3" - TYPE N ROOF DECK CENTERED ON LOW FLUTE AS SHOWN ROUND OR SQUARE OPENING THRU (1) DECK LOW FLUTE 11" DIA. MAX. EACH SIDE EXTEND (2) FLUTES MIN. BEYOND OPENING L2x2x3/16 w/ (2) #10 SELF DRILLING SCREWS AT EACH LOW FLUTE EACH SIDE OF OPENING 1/4" MIN. 1/4" MIN.
