Structural · S-XPFWJ

Typical Slab Edge Condition At Beam

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Floors / Slabs Decks Arches Bracing Anchors / Embeds Connections / Plates Roof / Floor Openings

Connections

Bracing Connection Welded Connection Bolted Connection Deck Attachment Embed Plate

About this detail

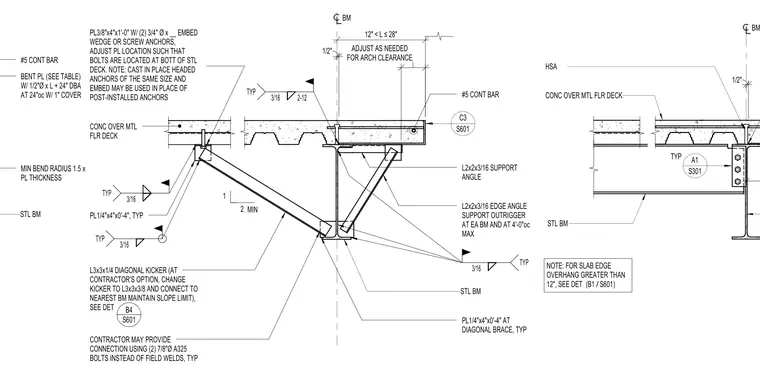

A slab edge condition framing connection occurs at a steel beam supporting concrete over a metal floor deck. An edge angle support outrigger fabricated from an L2x2x3/16 angle is provided at each beam and spaced at a maximum of four feet on center. A diagonal kicker made from an L3x3x1/4 angle connects back to the steel beam web or bottom flange, with an option for the contractor to substitute an L3x3x3/8 angle connected to the nearest beam while maintaining the slope limit. Connection plates including a 3/8-inch by 4-inch by 1-foot-0-inch bent plate with two 3/4-inch diameter embed wedge or screw anchors secure the slab edge, with cast-in-place headed anchors permitted as alternatives. Fillet welds of 3/16-inch typified across the gusset and brace connections tie the outrigger and diagonal kicker assembly to the structural steel beam, though the contractor may substitute two 7/8-inch diameter A325 bolts instead of field welds where indicated. A continuous number five reinforcing bar runs within the concrete slab over the metal deck, and a minimum bend radius of 1.5 times the plate thickness applies to bent plates.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
