Structural · S-XP4GR

Existing Concrete Slab and Wall Renovation Detail

Materials

Concrete Reinforced Concrete Steel

Elements

Beams Walls Floors / Slabs Anchors / Embeds Reinforcing

Connections

Welded Connection Rebar Splice / Development Embed Plate

About this detail

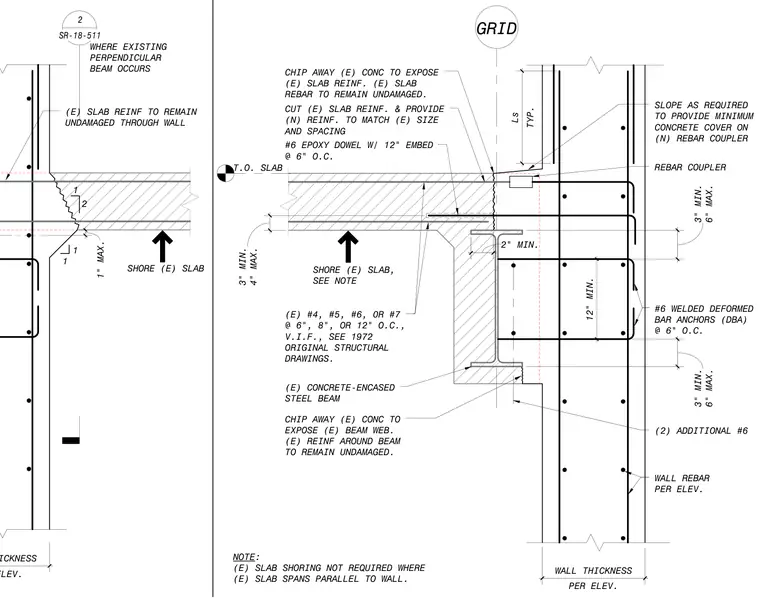

Concrete is chipped away to expose existing slab reinforcement and the steel beam web, ensuring existing bars remain undamaged. New rebar couplers splice into the cut slab reinforcement to match the existing size and spacing. Number 6 epoxy dowels with twelve-inch embedment at six inches on center tie into the wall, supplemented by number 6 welded deformed bar anchors at six inches on center. The assembly incorporates specific clearances including three-inch minimum and six-inch maximum dimensions, with shoring provided for the existing slab as required.
