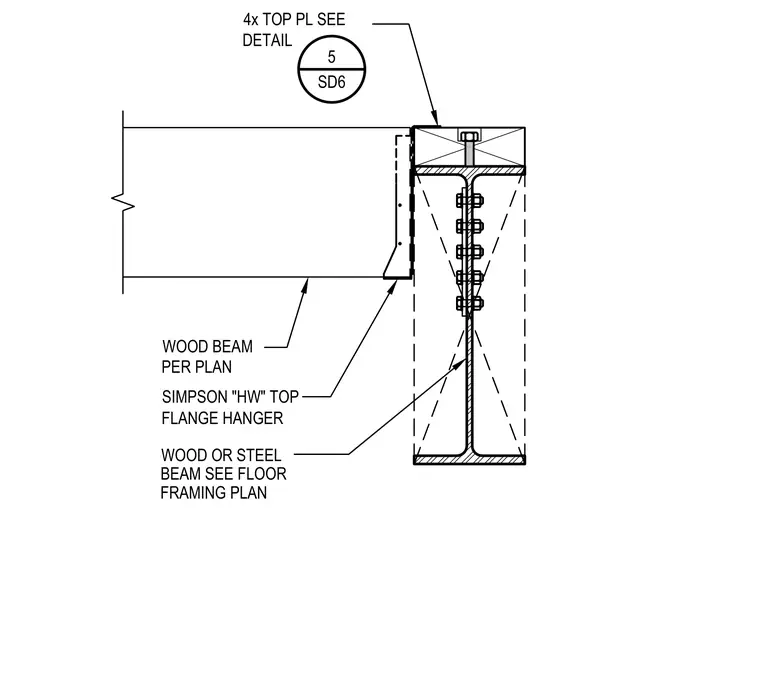

A wood beam per plan connects to a supporting wood or steel beam via a Simpson "HW" top flange hanger. A four-by top plate detailed elsewhere sits on top of the supporting member flange. The supporting beam is sized per the floor framing plan.
4x TOP PL SEE DETAIL 5 SD6 WOOD BEAM PER PLAN SIMPSON "HW" TOP FLANGE HANGER WOOD OR STEEL BEAM SEE FLOOR FRAMING PLAN
