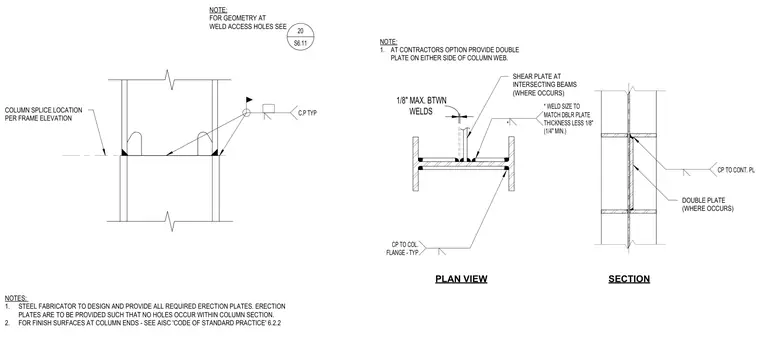

Steel column panel zone reinforced with a doubler plate attached to the column web and flanges with welded connections. A double plate may be provided on either side of the column web at the contractor's option. Weld sizes match the doubler plate thickness minus one-eighth inch with a one-quarter inch minimum. Shear plates connect intersecting beams where they occur. Column splices and weld access holes are detailed per structural notes and AISC standards.
PLAN VIEW SECTION 1. NOTE: AT CONTRACTORS OPTION PROVIDE DOUBLE PLATE ON EITHER SIDE OF COLUMN WEB. CP TO CONT. PL DOUBLE PLATE (WHERE OCCURS) CP TO COL. FLANGE - TYP WELDS 1/8" MAX. BTWN * * WELD SIZE TO MATCH DBLR PLATE THICKNESS LESS 1/8" (1/4" MIN.) SHEAR PLATE AT INTERSECTING BEAMS (WHERE OCCURS) 1. 2. NOTES: STEEL FABRICATOR TO DESIGN AND PROVIDE ALL REQUIRED ERECTION PLATES. ERECTION PLATES ARE TO BE PROVIDED SUCH THAT NO HOLES OCCUR WITHIN COLUMN SECTION. FOR FINISH SURFACES AT COLUMN ENDS - SEE AISC 'CODE OF STANDARD PRACTICE' 6.2.2 C.P TYP COLUMN SPLICE LOCATION PER FRAME ELEVATION NOTE: FOR GEOMETRY AT WELD ACCESS HOLES SEE 20 S6.11
