Structural · S-XNWEW

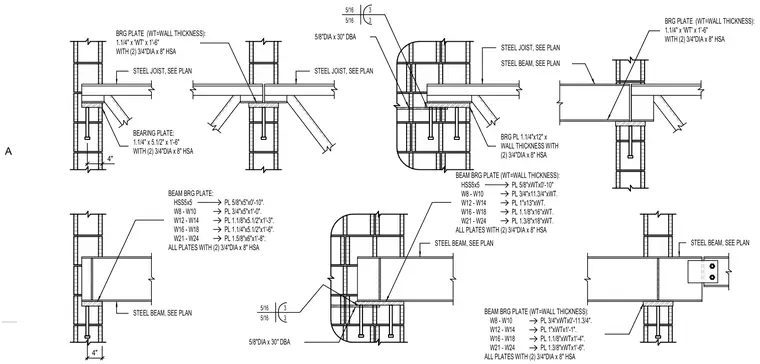

Steel Beam and Joist Bearing Plates at Masonry Wall

Materials

Elements

Beams Walls Floors / Slabs Connections / Plates

About this detail

Steel beams and joists bear upon steel plates anchored to masonry walls using three-quarter-inch diameter by eight-inch headed stud anchors and five-eighth-inch diameter by thirty-inch deformed bar anchors. Bearing plates vary in thickness and dimension depending on the supported structural shape, ranging from five-eighths inch to one and three-eighths inches thick, sized according to wall thickness and member size. Connections include welded elements such as five-sixteenth-inch fillet welds as specified on the structural plans.
