Electrical · S-XNV33

Wall Mounted Stainless Steel Telecommunications Enclosure Detail

Materials

Concrete Steel Stainless Steel Timber / Wood Metal (misc.)

Elements

Walls Doors Ceilings Anchors / Embeds Connections / Plates

About this detail

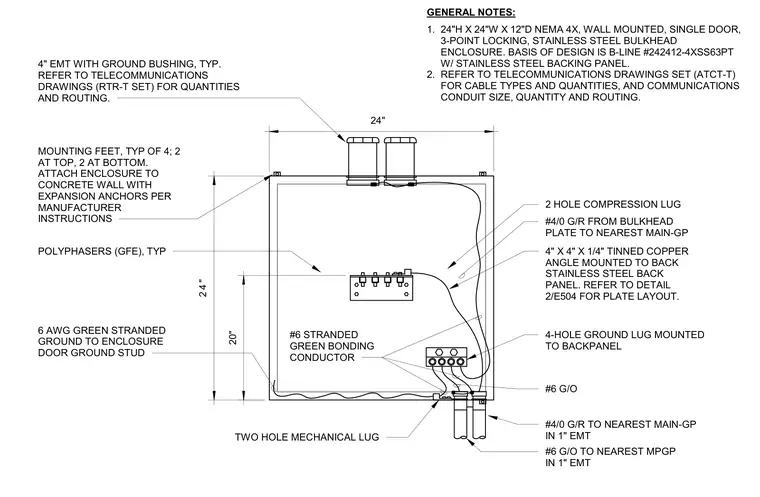

A wall-mounted single-door NEMA 4X stainless steel bulkhead enclosure measuring twenty-four inches high, twenty-four inches wide, and twelve inches deep, secured to a concrete wall using four mounting feet and expansion anchors. Inside the enclosure, a stainless steel back panel holds a four-inch by four-inch by quarter-inch tinned copper angle along with polyphasers and ground lugs. A number six stranded green bonding conductor connects the door ground stud, while number four-slash-zero ground risers and number six ground conductors route through one-inch electrical metallic tubing with ground bushings to the nearest main ground plate and master principal ground point. Two four-inch electrical metallic tubing conduits enter the top for telecommunications cabling.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
