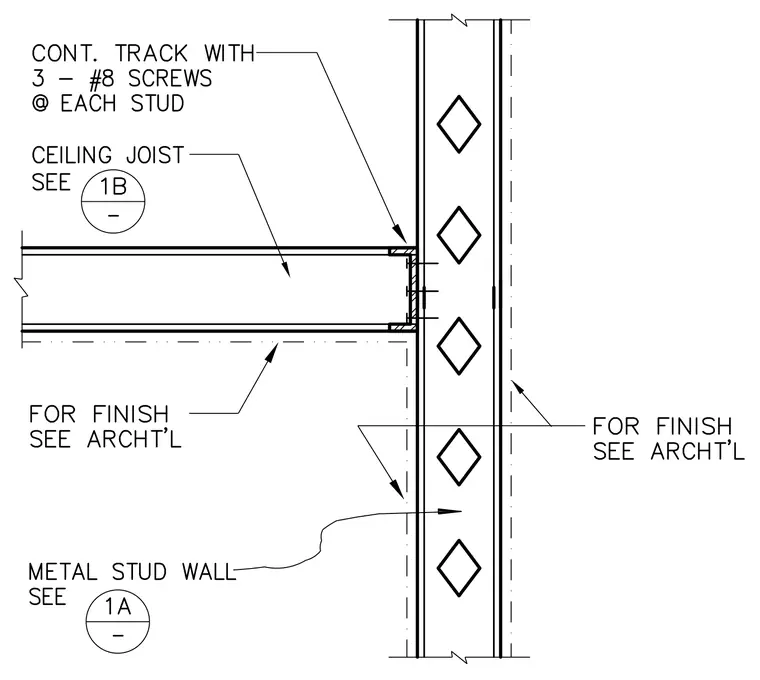

A cold-formed steel ceiling joist bears into a continuous track fastened to a metal stud wall. The track is secured with three number eight screws at each stud. The ceiling joist links to the vertical stud wall framing with referenced coordination to sheet 1B for the joist and sheet 1A for the metal stud wall. Wall and ceiling finishes are deferred to architectural drawings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
