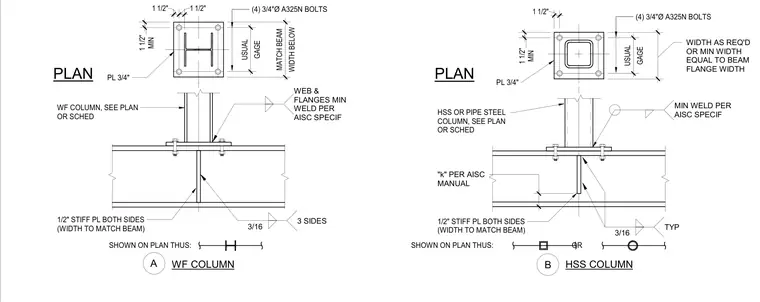

These structural details illustrate steel column bases supported directly by a wide flange beam. The assembly incorporates a three-quarter-inch base plate secured with four three-quarter-inch diameter A325N bolts. Web and flange connections are welded per AISC specifications using three-sixteenth-inch welds on three sides. One-half-inch stiffener plates are provided on both sides of the supporting beam web, sized in width to match the beam flange and spaced according to the AISC manual dimension "k".
SHOWN ON PLAN THUS: 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) WF COLUMN, SEE PLAN OR SCHED PL 3/4" SHOWN ON PLAN THUS: OR HSS OR PIPE STEEL COLUMN, SEE PLAN OR SCHED 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) "k" PER AISC MANUAL (4) 3/4"Ø A325N BOLTS HSS COLUMN A WF COLUMN B PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS PLAN 3/16 3 SIDES WEB & FLANGES MIN WELD PER AISC SPECIF . MIN 1 1/2" 1 1/2" GAGE USUAL MIN 1 1/2" 1 1/2" 1 1/2" GAGE USUAL WIDTH BELOW MATCH BEAM MIN WELD PER AISC SPECIF 3/16 TYP WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH .
