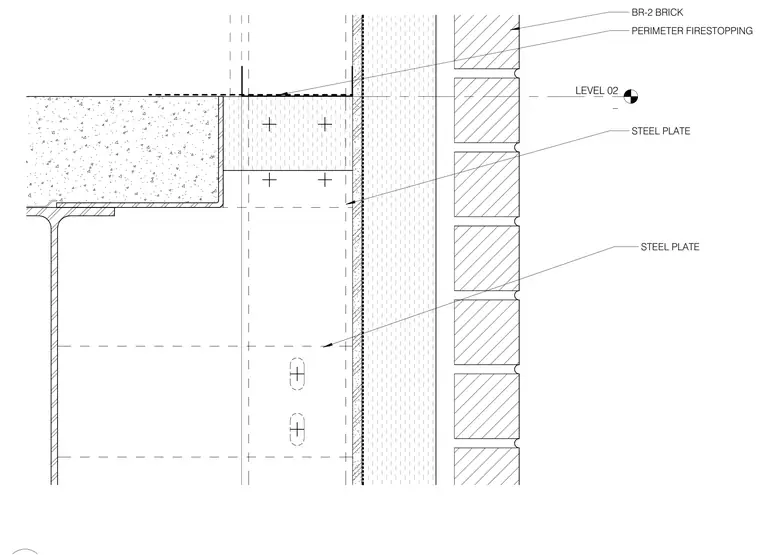

A concrete floor slab bears on a structural steel beam at Level 02, adjacent to an exterior brick masonry veneer wall. Steel plates anchor the assembly at the floor level alongside perimeter firestopping located between the slab edge and the exterior wall cavity.
