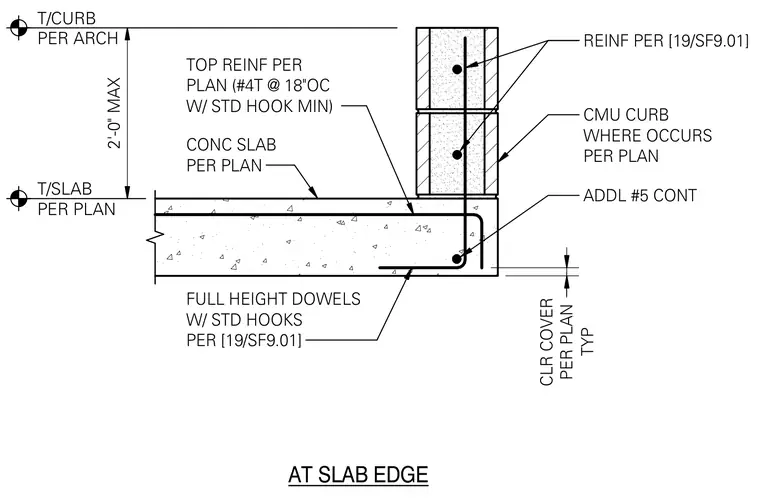

A concrete slab edge supports a concrete masonry unit curb with vertical dowels featuring standard hooks per plan. Additional number five continuous reinforcing bars run along the slab edge beneath the curb. Top reinforcing consists of number four bars at eighteen inches on center with standard hooks minimum. Clear cover is maintained per plan throughout the assembly.
CONC SLAB PER PLAN REINF PER [19/SF9.01] T/SLAB PER PLAN TYP CLR COVER PER PLAN ADDL #5 CONT T/CURB PER ARCH CMU CURB WHERE OCCURS PER PLAN FULL HEIGHT DOWELS W/ STD HOOKS PER [19/SF9.01] AT SLAB EDGE 2'-0" MAX TOP REINF PER PLAN (#4T @ 18"OC W/ STD HOOK MIN)
