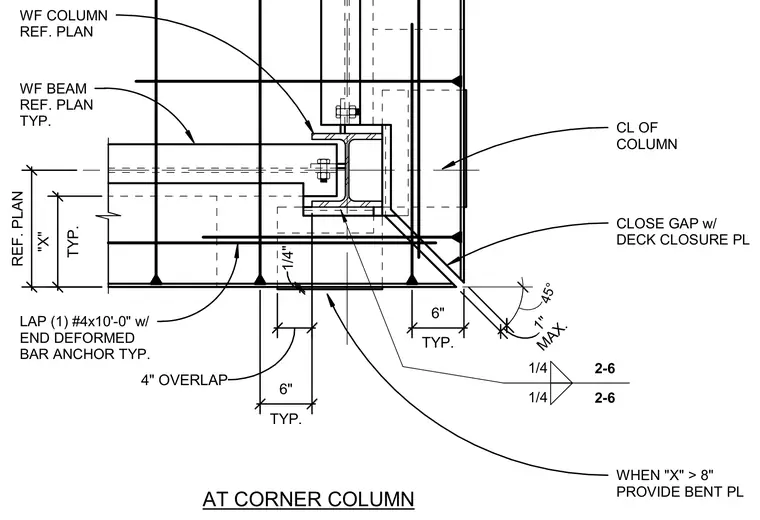

A wide-flange column and wide-flange beam frame at a building corner with a deck closure plate. The gap is closed using a deck closure plate welded with quarter-inch fillet welds. Reinforcing includes one number four by ten-foot-long deformed bar anchor with a four-inch typical overlap. A bent plate is provided when dimension X exceeds eight inches.
CLOSE GAP w/ DECK CLOSURE PL WF COLUMN REF. PLAN WF BEAM REF. PLAN TYP. CL OF COLUMN LAP (1) #4x10'-0" w/ END DEFORMED BAR ANCHOR TYP. MAX. 1" 45° TYP. 6" AT CORNER COLUMN 4" OVERLAP TYP. 6" WHEN "X" > 8" PROVIDE BENT PL TYP. "X" REF. PLAN 1/4 1/4 1/4" 2-6 2-6
