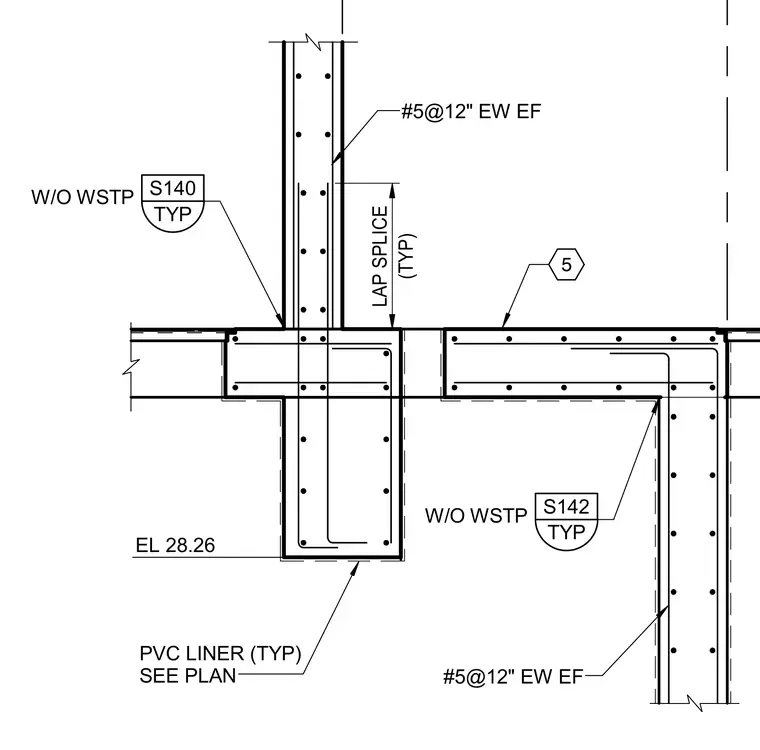

Reinforced concrete walls and beams feature number five reinforcing bars spaced at twelve inches each way, each face. A typical lap splice zone connects vertical wall reinforcement above and below the beam intersection. A polyvinyl chloride liner runs continuously along the exterior face of the concrete elements as sized per plan at elevation 28.26. Detail references direct to sheets S140 and S142 for conditions without waterstops.
(TYP) LAP SPLICE TYP S140 W/O WSTP TYP S142 W/O WSTP #5@12" EW EF EL 28.26 PVC LINER (TYP) SEE PLAN 5 #5@12" EW EF
