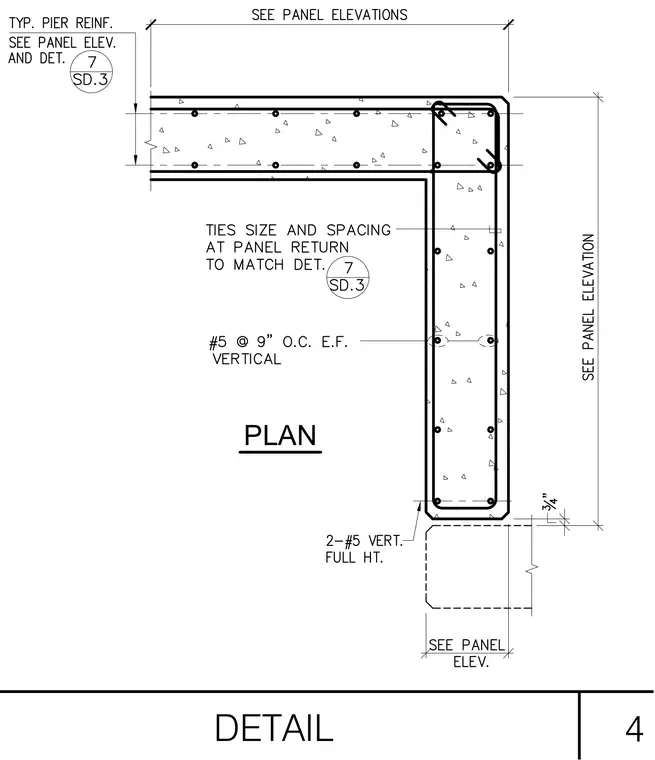

A reinforced concrete panel corner with a return and adjacent pier configuration. Vertical reinforcement consists of number 5 bars spaced at nine inches on center each face, supplemented by two number 5 vertical bars spanning the full height at the end condition. Panel return ties match the size, spacing, and configuration specified in detail 7 on sheet SD.3. Typical pier reinforcement refers to panel elevations and detail 7 on sheet SD.3. Overall dimensions and joint clearances are indicated across the concrete section.
