A structural steel beam frames into a concrete tilt-up panel joint utilizing an embedded plate connection on each panel side. The connection features two-inch slotted holes with threaded studs matching the size, spacing, and quantity of the beam connection bolts. The threaded studs weld to the embed plate, left unwelded to the angle on the specified side. Angles and bolt quantities follow the web plate connection schedule. Fillet welds of five-sixteenth-inch size connect the assembly on three sides. Alternate plate configurations apply for W12 and W14 conditions versus W16 and W18 conditions.

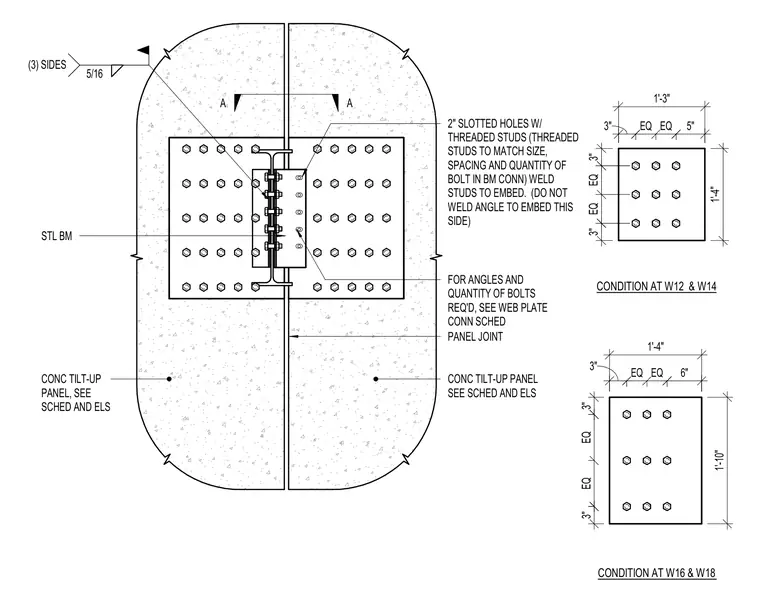

A A CONC TILT-UP PANEL SEE SCHED AND ELS CONC TILT-UP PANEL, SEE SCHED AND ELS PANEL JOINT STL BM 2" SLOTTED HOLES W/ THREADED STUDS (THREADED STUDS TO MATCH SIZE, SPACING AND QUANTITY OF BOLT IN BM CONN) WELD STUDS TO EMBED. (DO NOT WELD ANGLE TO EMBED THIS SIDE) FOR ANGLES AND QUANTITY OF BOLTS REQ'D, SEE WEB PLATE CONN SCHED 5/16 (3) SIDES CONDITION AT W16 & W18 CONDITION AT W12 & W14 EQ EQ 3" 3" EQ EQ 1'-3" 1'-4" 3" 5" 3" 3" 1'-10" 1'-4" 6" 3" EQ EQ EQ EQ
