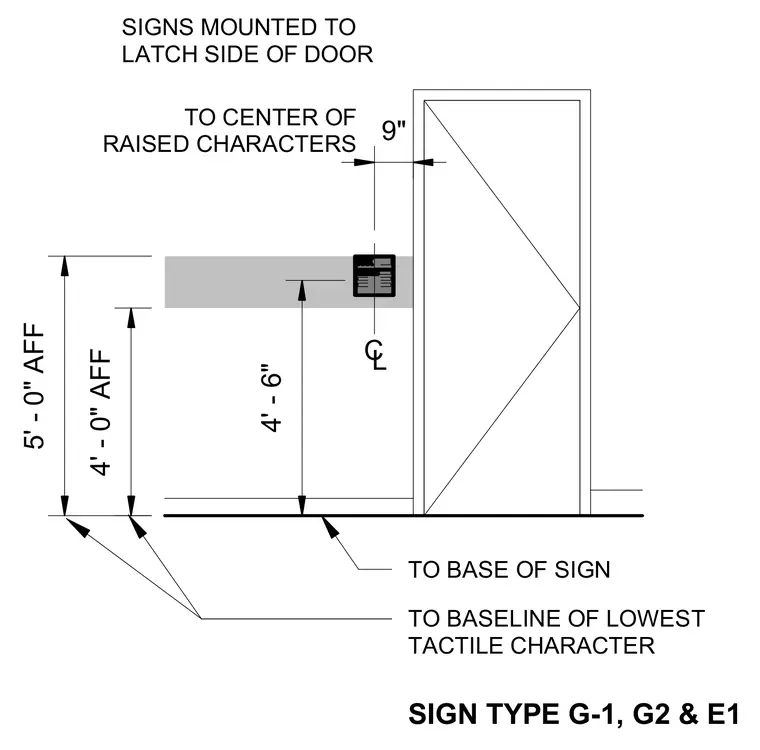

Signage types G-1, G-2, and E1 are mounted to the latch side of the door with specific vertical and horizontal positioning. The centerline of the raised characters is located 9 inches from the door frame. The base of the sign sits at 4 feet 6 inches above finished floor, while the baseline of the lowest tactile character is positioned at 4 feet 0 inches above finished floor. The top of the sign mounting zone reaches 5 feet 0 inches above finished floor.
CL 9" 4' - 0" AFF 5' - 0" AFF SIGNS MOUNTED TO LATCH SIDE OF DOOR TO CENTER OF RAISED CHARACTERS TO BASE OF SIGN TO BASELINE OF LOWEST TACTILE CHARACTER SIGN TYPE G-1, G2 & E1 4' - 6"
