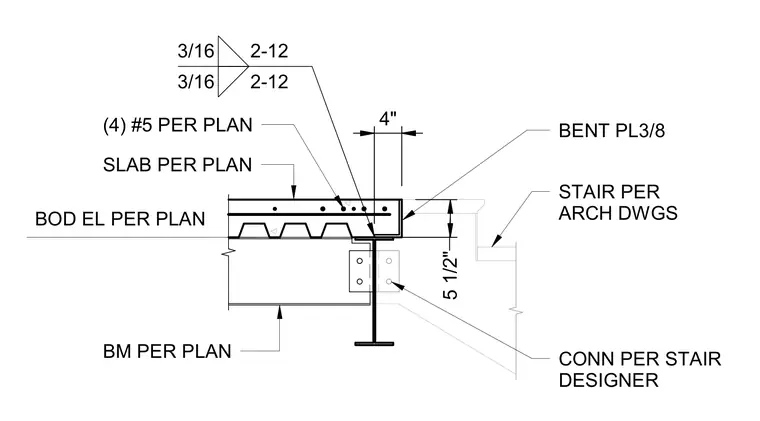

A stair stringer connects to a concrete slab on metal deck supported by a steel beam. Four number five reinforcing bars run through the slab as specified per plan. A three-eighths-inch bent plate welded with three-sixteenths-inch fillet welds at two inches on center with twelve-inch spacing finishes the edge. The connection at the stair is detailed per the stair designer and architectural drawings. The beam and bottom of deck elevation are sized per plan.
3/16 2-12 3/16 2-12 BM PER PLAN STAIR PER ARCH DWGS BOD EL PER PLAN 116' - 2 1/2" BENT PL3/8 4" 5 1/2" CONN PER STAIR DESIGNER SLAB PER PLAN (4) #5 PER PLAN
