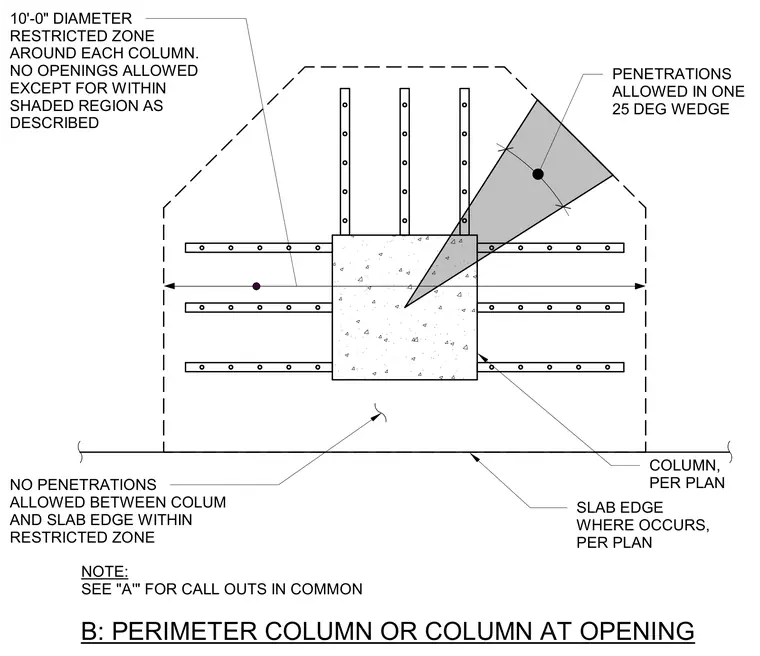

A perimeter column is shown centered in a ten-foot diameter restricted zone with no penetrations allowed between the column and the slab edge. Openings are strictly prohibited except within the shaded region designated as a twenty-five degree wedge. The slab edge is positioned per plan relative to the structural column.
COLUMN, PER PLAN B: PERIMETER COLUMN OR COLUMN AT OPENING NO PENETRATIONS ALLOWED BETWEEN COLUM AND SLAB EDGE WITHIN RESTRICTED ZONE 10'-0" DIAMETER RESTRICTED ZONE AROUND EACH COLUMN. NO OPENINGS ALLOWED EXCEPT FOR WITHIN SHADED REGION AS DESCRIBED 25° PENETRATIONS ALLOWED IN ONE 25 DEG WEDGE SLAB EDGE WHERE OCCURS, PER PLAN NOTE: SEE "A'" FOR CALL OUTS IN COMMON
