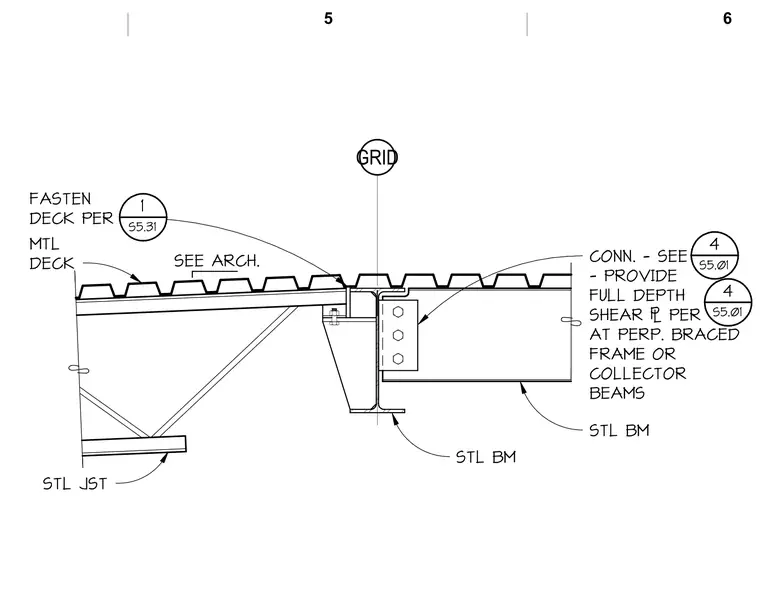

A structural steel beam connects to a supporting steel beam using a full-depth shear plate with three bolts. A metal deck bears across the top flange of the supporting beam, fastened according to sheet specifications. A steel joist frames into the assembly adjacent to the primary connection. A column grid line runs vertically through the center of the supporting beam web.
FASTEN DECK PER 1 S5.31 MTL DECK STL JST STL BM CONN. - SEE - PROVIDE FULL DEPTH SHEAR PER AT PERP. BRACED FRAME OR COLLECTOR BEAMS STL BM 4 S5.01 GRID SEE ARCH. 4 S5.01 5 6
