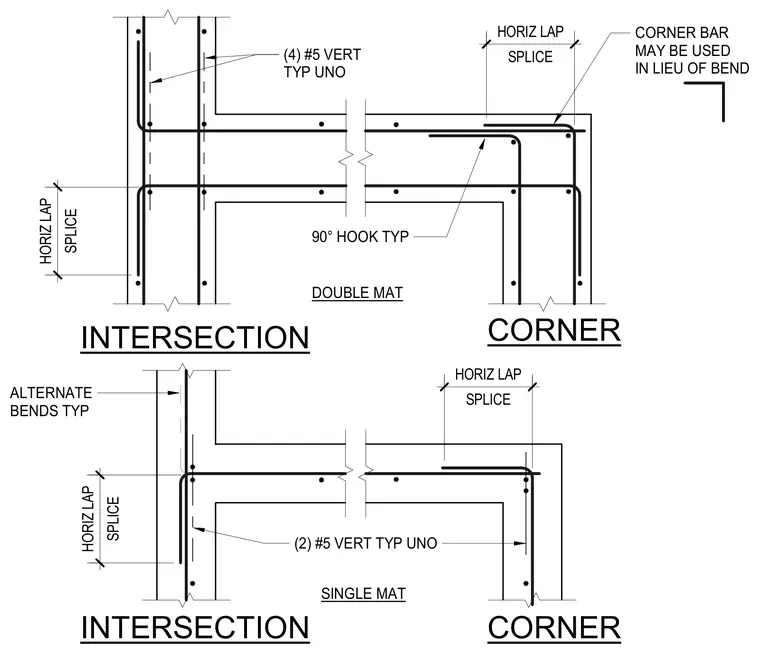

Reinforced concrete wall corners and intersections utilize specific vertical bar counts and horizontal lap splices for single and double mat configurations. Vertical reinforcement includes four number five bars typically unless noted otherwise at intersections, and two number five bars typically unless noted otherwise for alternate bends. Corners incorporate ninety-degree hooks typically, with optional corner bars used in lieu of standard bends.
CORNER INTERSECTION INTERSECTION CORNER SINGLE MAT DOUBLE MAT (4) #5 VERT TYP UNO CORNER BAR MAY BE USED IN LIEU OF BEND 90° HOOK TYP (2) #5 VERT TYP UNO ALTERNATE BENDS TYP SPLICE HORIZ LAP SPLICE HORIZ LAP SPLICE HORIZ LAP SPLICE HORIZ LAP
